Advanced Computational Image Processing Software

Prism™ ISP

Ir a página de asistencia
product image

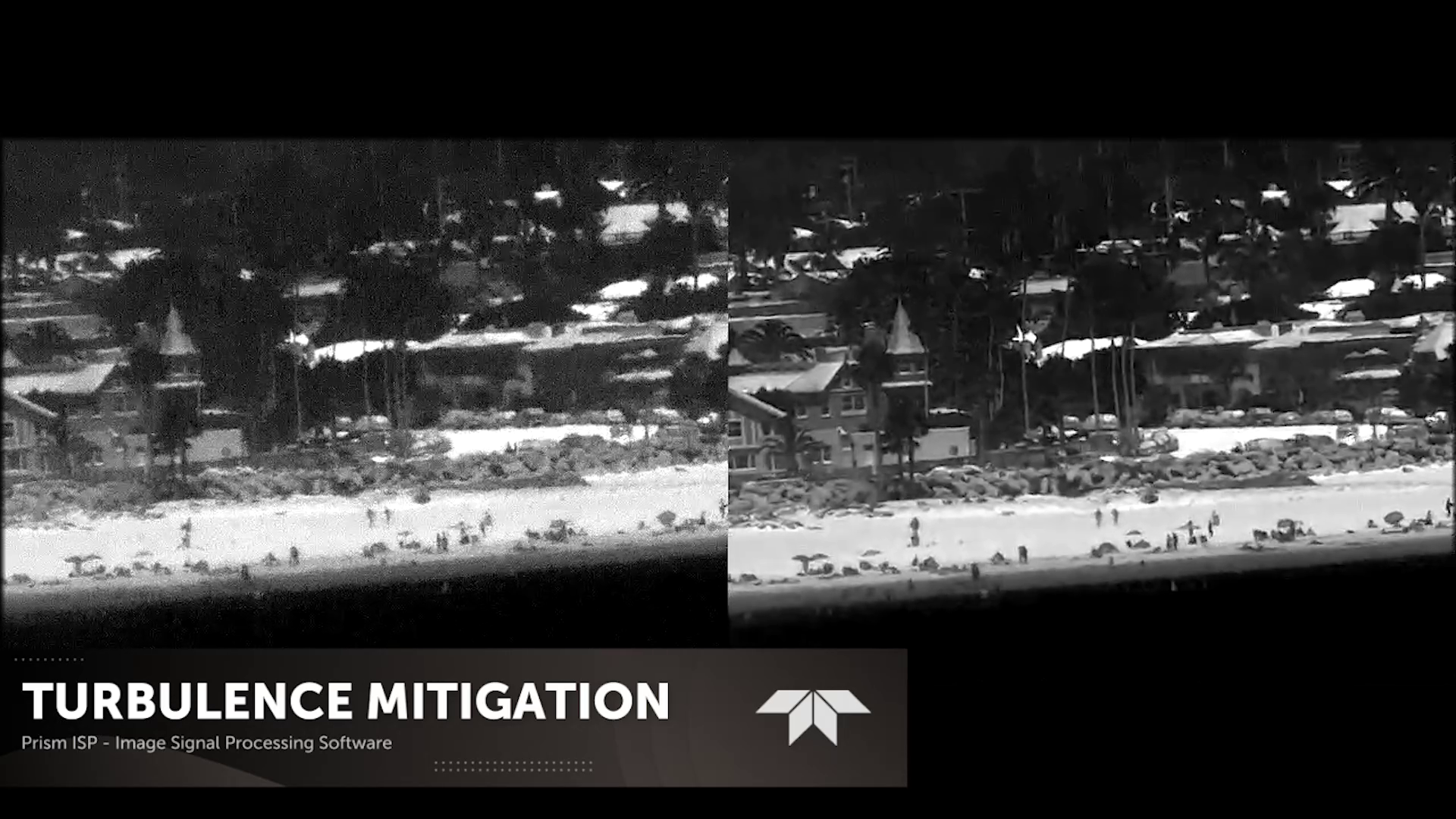

Prism ISP is a collection of image signal processing (ISP) software libraries that include super-resolution, electronic image stabilization, image fusion, turbulence mitigation, noise reduction, and more. Compiled to run on low-power embedded processors from Qualcomm and NVIDIA, enabling developers to bring computational imaging to the edge while improving performance, lowering development costs, and shortening time to market.

Prism ISP is compatible with Teledyne FLIR market-leading thermal cores including Boson®, Tau® 2, Hadron™, and Neutrino®. The ISP libraries enable integrators to leverage high-performance ISP algorithms that dramatically enhance the viewed image quality and AI capabilities of world-class infrared camera modules for defense, industrial, and commercial applications.

  • Industry-leading thermal performance

    High-value image quality enhancements improve operator viewing and perception software pre-processing

  • Leverage algorithm ecosystem to shorten time to market

    Flexible software library lowers investment for integrating thermal-camera-computational imaging

  • Built for developers with the Teledyne FLIR brand promise

    Trusted global leader in thermal infrared sensing and solutions

Especificaciones
Características del software
Autenticación
Camera to ECU key handshake with 256-bit challenge/response

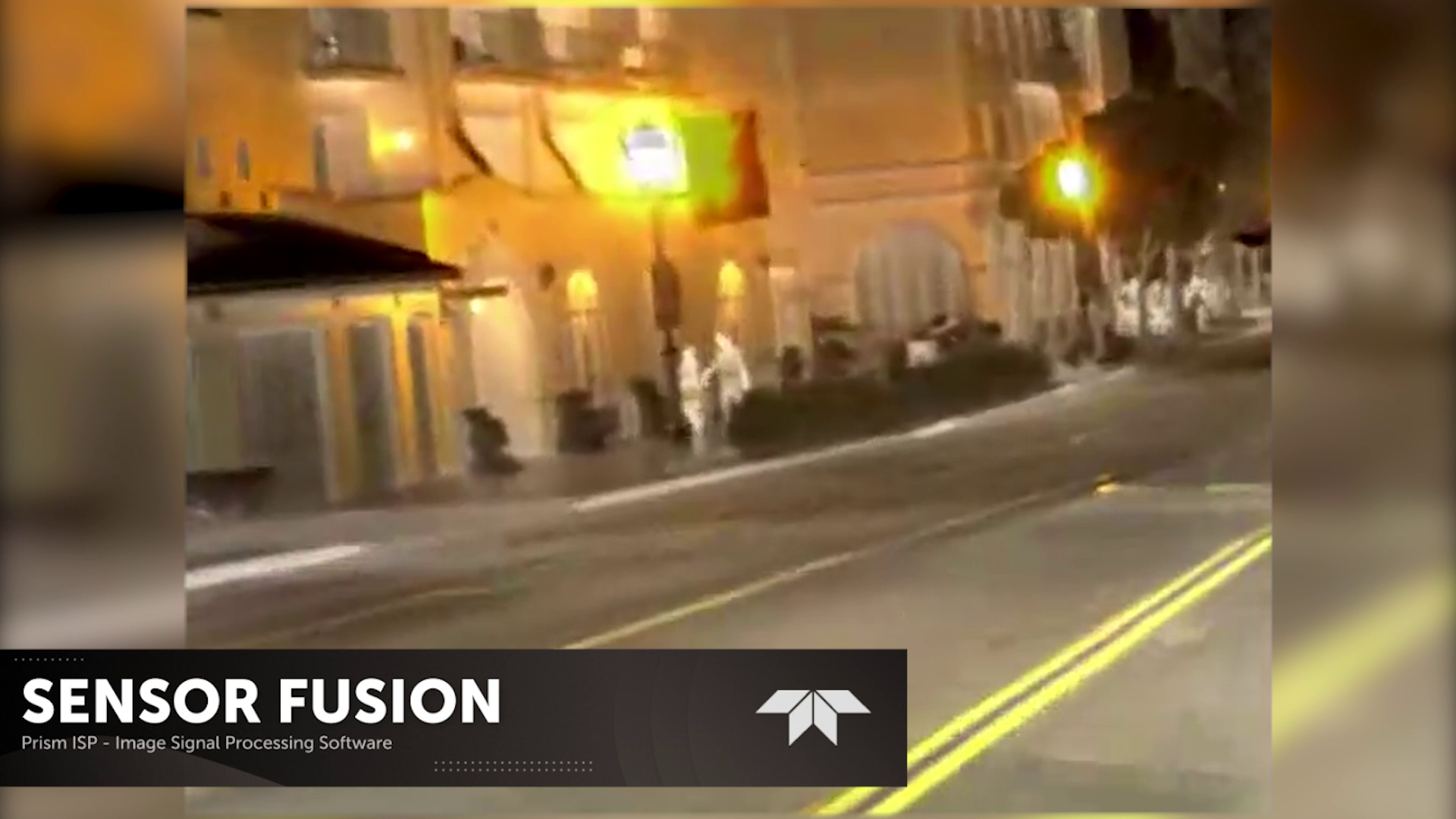

Cross Modality Image Registration
Automatic alignment of thermal and EO to compensate for parallax and time sync differences
Deblurring
Blind and semi blind (motion known) methods supported to restore MTF (thermal video)
Deformación
Radial and tangential lens dewarping
Hardware compatible
Qualcomm: Snapdragon 8 gen 1 (RB5/QRB5165) & Snapdragon 8 gen 2 (QCS8550)
NVIDIA: Jetson Xavier & Jetson Orin
Other Qualcomm and NVIDA HW on request

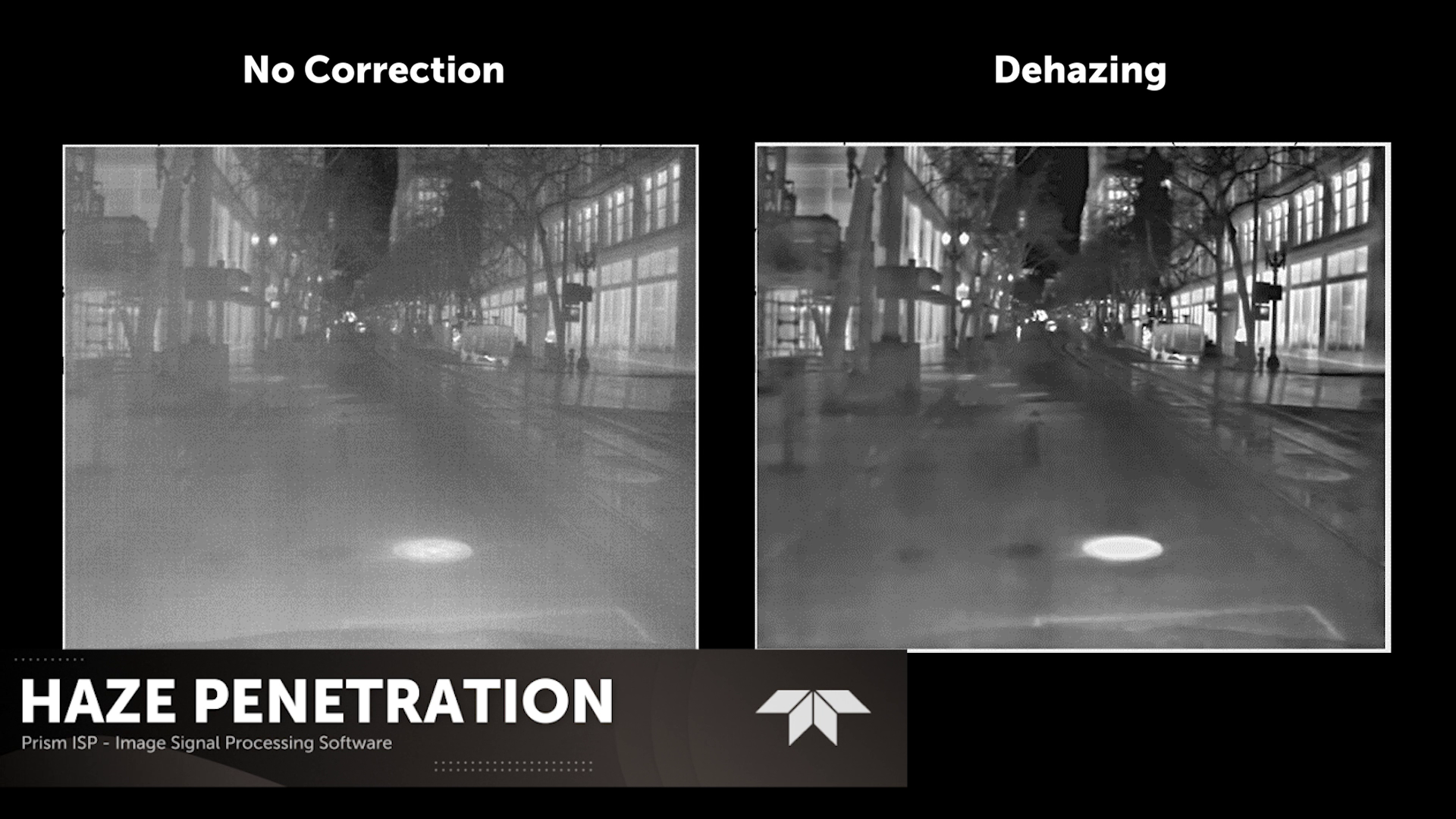

Haze Penetration
Locally adaptive compesnation for atmosperic dispertion (thermal)

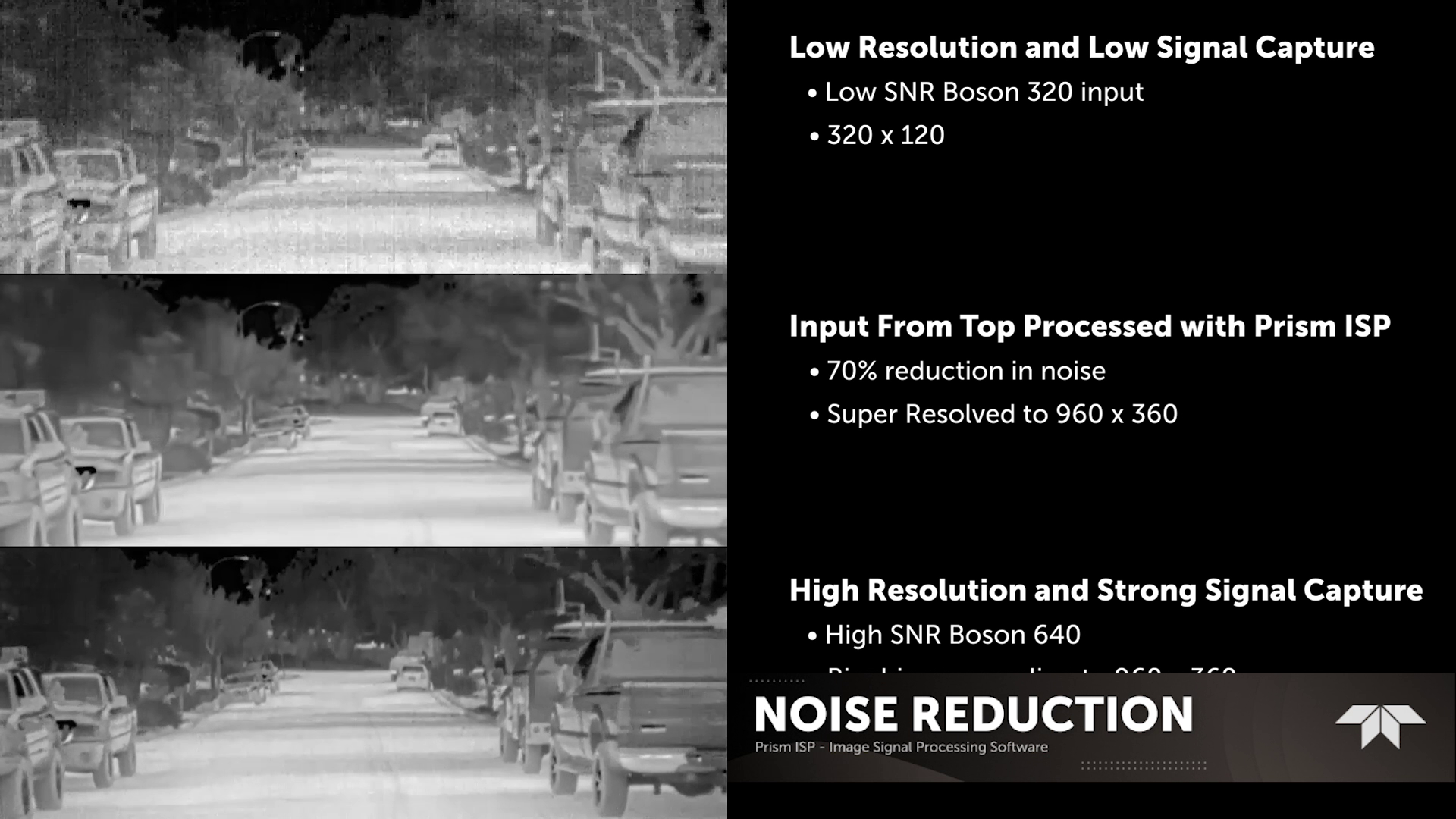

Motion Compensated Temporal Noise Reduction
Advanced, mutiframe noise reduction (thermal video)
Pseudocolor
Multiple color pallets available (thermal video)
Rectificación
Visible & thermal camera calibration process with pixel-accurate registration of visible & thermal
Scene Based Non-Uniformity Correction
Fixed pattern nosie removal (thermal video)
Sistemas operativos compatibles
Linux (18.04 and 20.04) verification done on Ubuntu distribution(s). Windows by request.

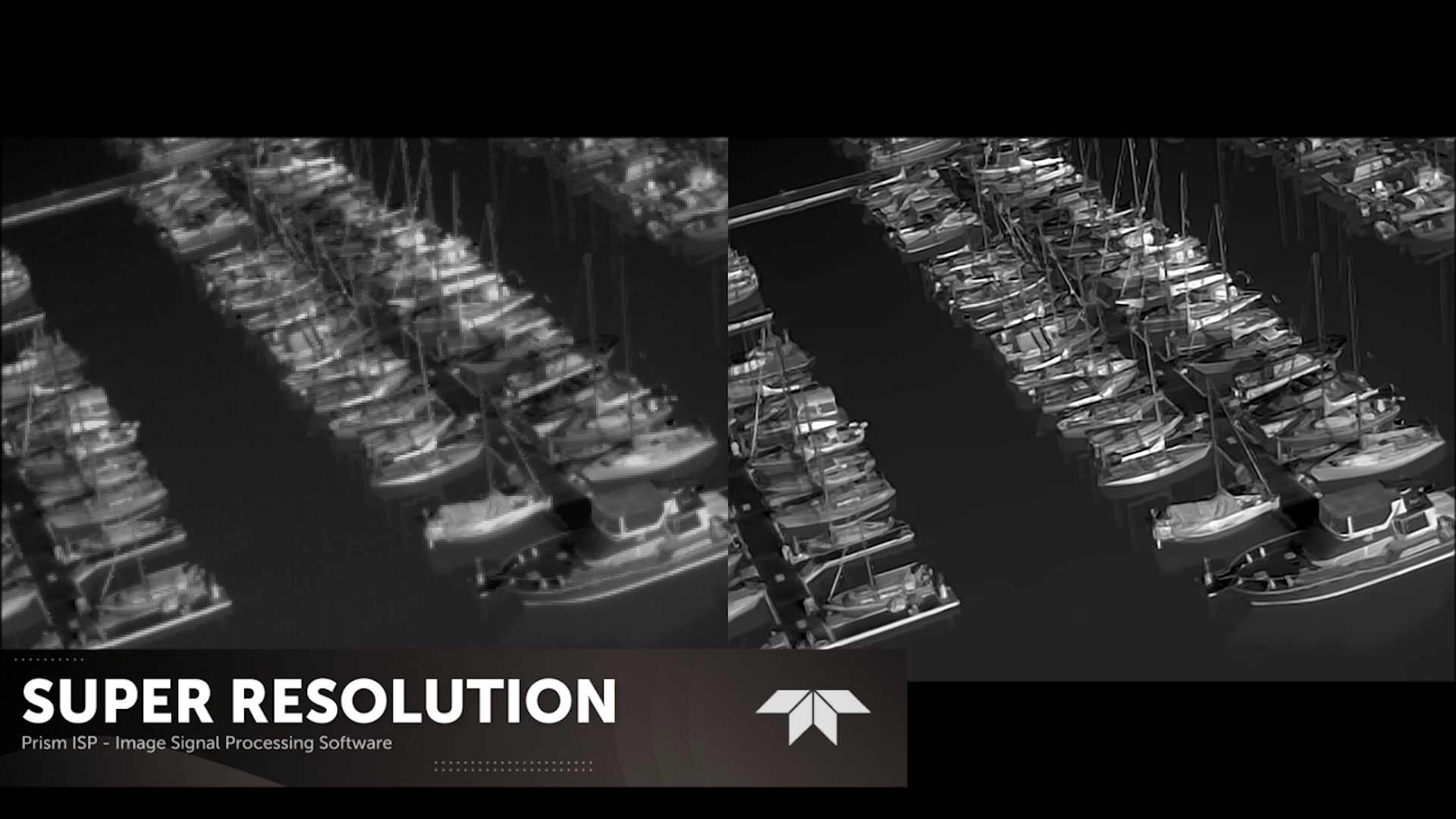

Super Resolution
Multiframe SR on full image or crop (e-zoom), 2X, 3X and 4X modes supported
Supported Video Formats
16b monochrome for LWIR/MWIR, 24b RGB/BGR for visible

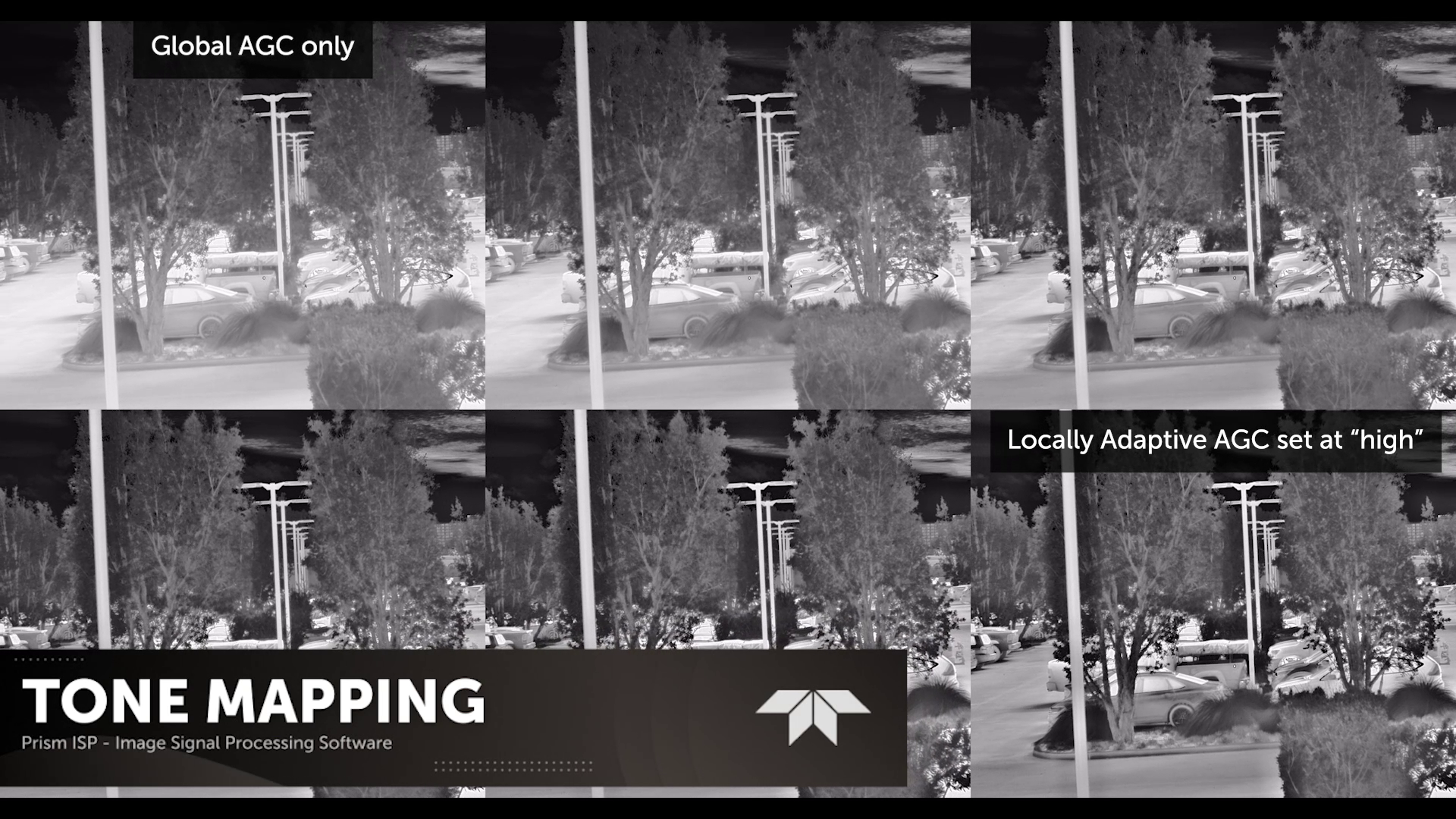

Tone Mapping
Global and locally adaptive methods supported, optimized for highly dynamic scenes

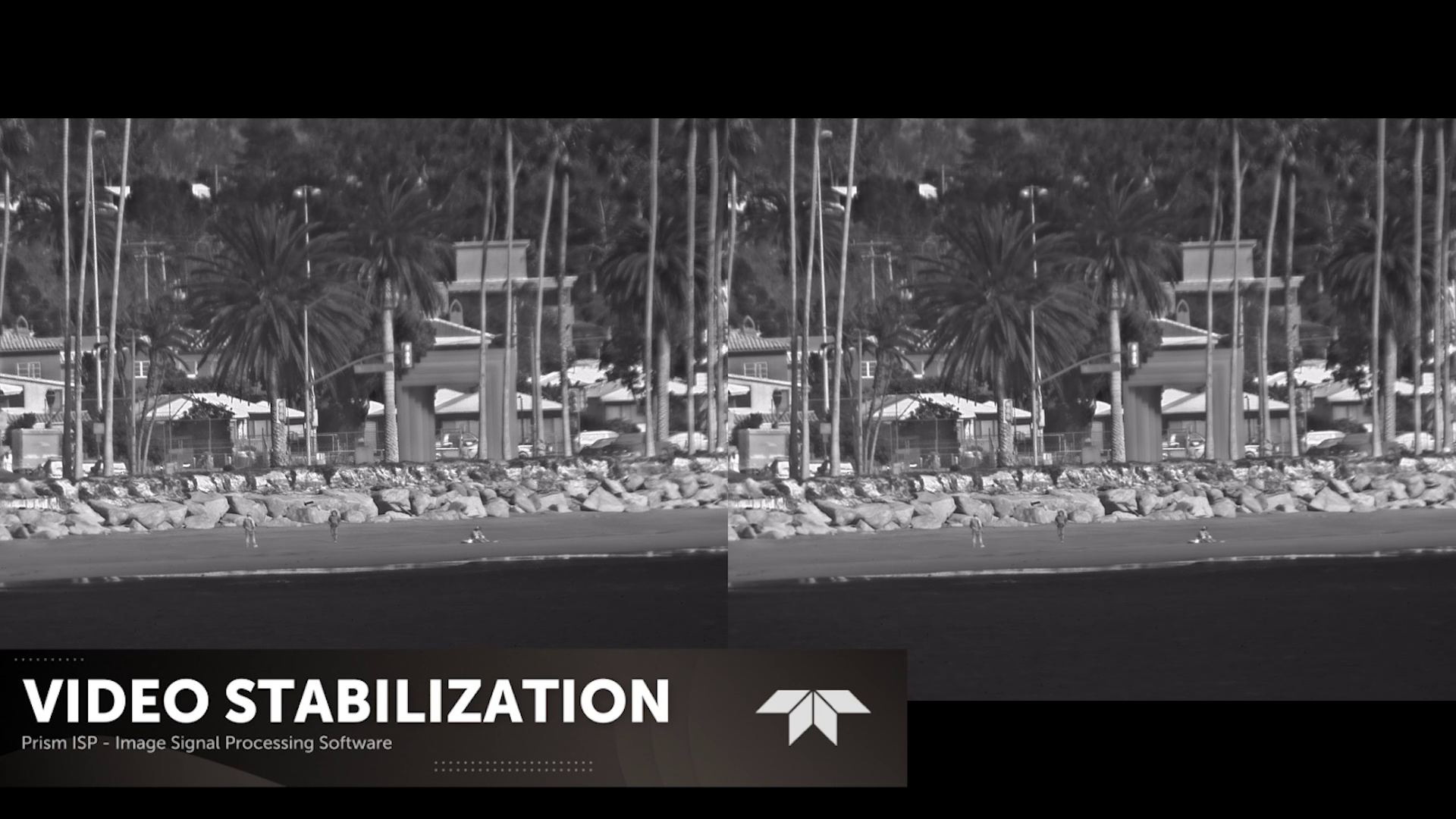

Video Stabilization
Removal of high temporal frequency jitter (thermal and EO)
Galería de prensa
Preview Prism AI Software Suite with Art Stout at CUAV 2023
Documentos relacionados
Restricciones de exportación

Restricciones de exportación

La información contenida en esta página se refiere a productos que pueden estar sujetos a la Normativa internacional sobre tráfico de armas (International Traffic in Arms Regulations, ITAR) (título 22 de C.F.R., secciones 120-130) o a la Normativa de administración de exportaciones (Export Administration Regulations, EAR) (título 15 del C.F.R., secciones 730-774) dependiendo de las especificaciones del producto final; la jurisdicción y clasificación se proporcionarán previa solicitud.
