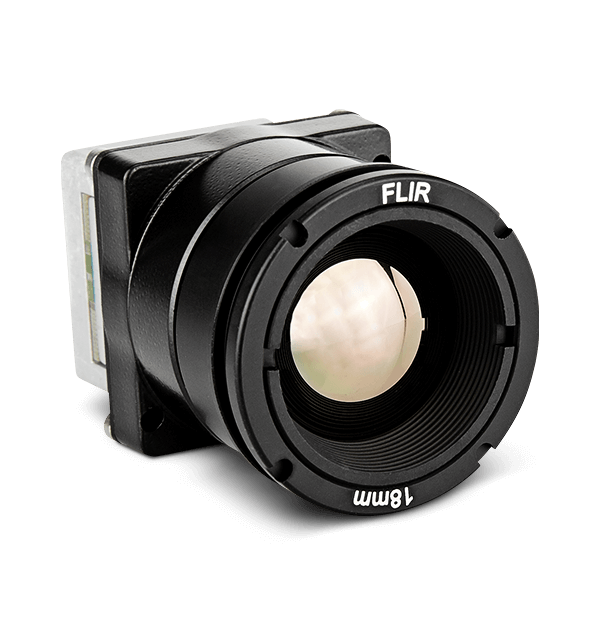

High Performance, Uncooled, Longwave Infrared (LWIR) OEM Thermal Camera Module

Boson®+

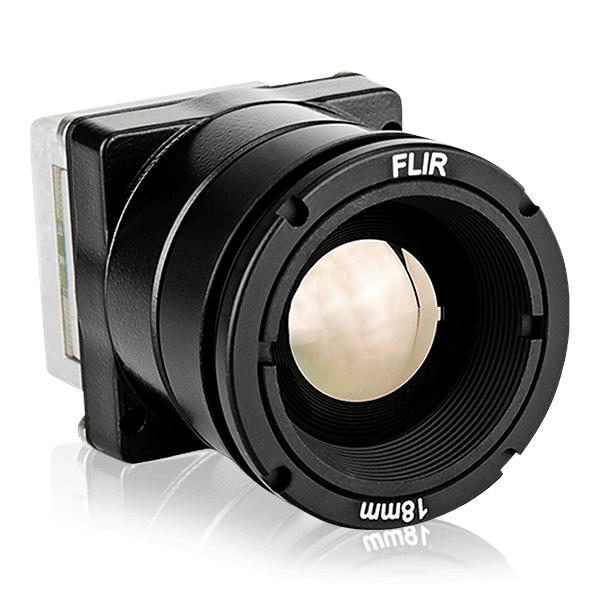

Modelo: Boson Plus 320, 12° (HFOV) 18 mm Ir a página de asistencia
product image

Made in the USA, and ITAR-free, the Boson+ sets the standard for longwave infrared (LWIR) OEM thermal camera performance and size, weight, and power (SWaP). It features an industry-leading thermal sensitivity of less than or equal to (≤)20 mK and an upgraded automatic gain control (AGC) filter delivering dramatically enhanced scene contrast and sharpness. Lower video latency enhances tracking, seeker performance, and decision support. Radiometry will be available in the first quarter of 2024 on 640 x 512 and 320 x 256 resolution models.

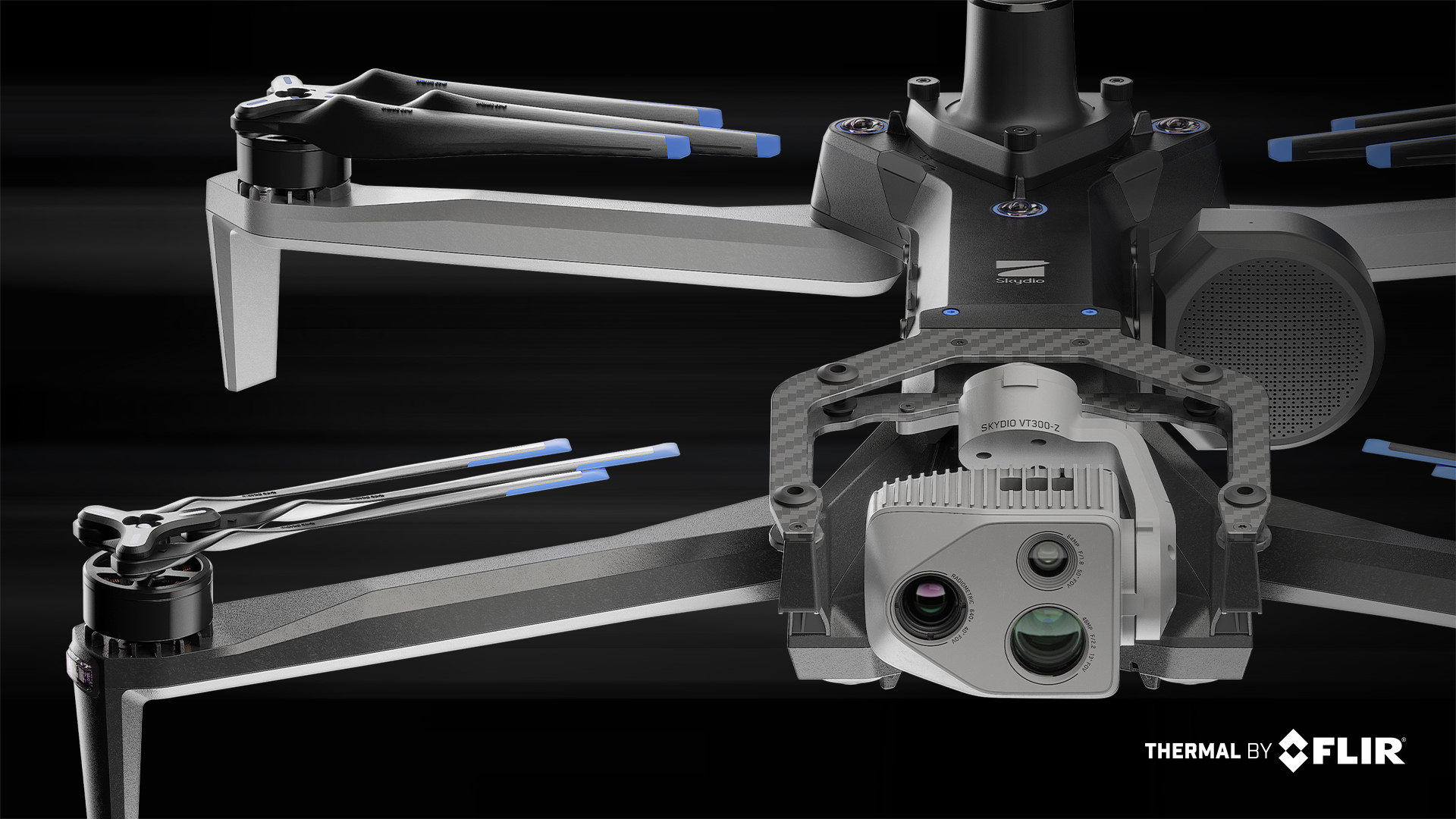

Boson+ maintains the widely-deployed Boson mechanical, electrical, and optical interfaces enabling a plug-and-play upgrade. New models also include factory-integrated continuous zooms lenses to streamline development and maximize performance. With customer-selectable USB, CMOS, or MIPI video interfaces, it is easier than ever to integrate Boson+ into a wider range of embedded processors from Qualcomm, Ambarella, and more. The user-friendly Boson SDK, GUI, and comprehensive product integration documentation further simplify OEM integration. Enhanced thermal performance and industry-leading reliability provide low-risk development, making Boson+ ideal for unmanned ground vehicles (UGV), unmanned aircraft systems (UAS), wearables, security applications, handhelds, and thermal sights.

Sensitive, Sharp & SWaP

  • Market-leading Thermal Sensitivity, Contrast, and Latency

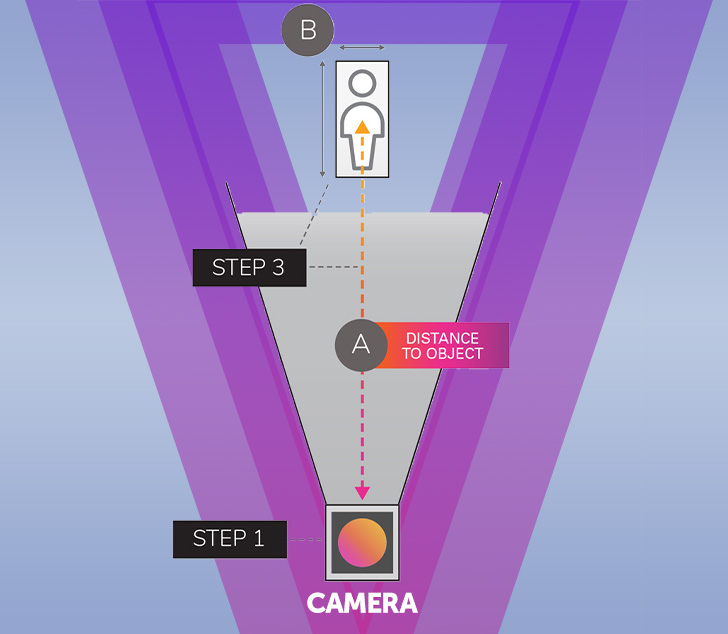

    NEDT of ≤20 mK extends detection, recognition, and identification (DRI) performance

  • Optimized Size, Weight, and Power (SWaP)

    Full-featured LWIR thermal camera module just 7.5 grams and less than 4.9 cm³

  • Plug-and-Play Upgrade

    Shared mechanical, electrical, and video interface across all Boson models

Especificaciones
Tamaño de píxel
12 µm
Opciones de frecuencia de imagen
60Hz default; 30 Hz runtime selectable
Rango espectral térmico
Longwave infrared; 8 µm – 14 µm
Rendimiento
Rango espectral térmico
Longwave infrared; 8 µm – 14 µm
Generación de imágenes y óptica
Corrección de no uniformidad (NUC)
Factory calibrated; updated FFCs with FLIR’s Silent Shutterless NUC (SSN™)
Formato en matriz
320 × 256
Instantáneas

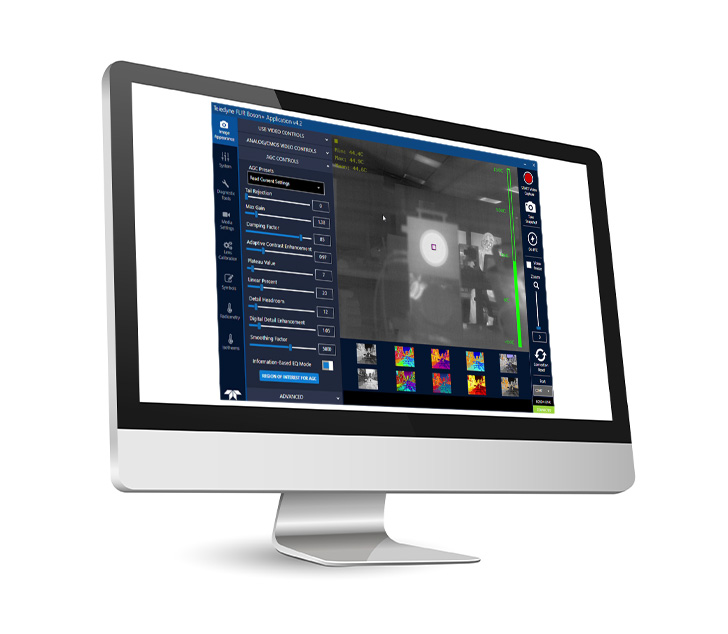

Full-frame snapshot via Boson GUI
Número F
1.0
Opciones de frecuencia de imagen
60Hz default; 30 Hz runtime selectable
Orientación de la imagen
Adjustable (vertical flip and/or horizontal flip)
Rango dinámico de escena
to 150 °C (high gain) to 350 °C (low gain)
Sensibilidad térmica
<20 mK (Industrial); <30 mK (Professional)
Superposición de símbolos
Re-writable each frame; alpha blending for translucent overlay
Tamaño de píxel
12 µm
Zoom digital
1x to 8x zoom
Conexiones y comunicaciones
Canales de control
UART, USB or I2C
Canales de vídeo
CMOS, MIPI or USB3
Canales periféricos
I2C, SPI, SDIO
Eléctrico
Disipación de potencia
Varies by configuration; as low as 600 mW
Voltaje de entrada
3.3 VDC
Mecánico
Orificios de montaje de precisión
Four tapped M1.6x0.35 (rear cover)
Peso
7.5 g without lens (configuration dependent)
Tamaño (sin lente)
21 x 21 x 11 mm
Medio ambiente y aprobaciones
Altitud operativa
12 km (max altitude of a commercial airliner or airborne platform)
Golpes
1,500 g @ 0.4 msec
Protección solar
Yes, when integrated with factory lens
Rango de temperatura no operativa
-50° C to 85° C
Rango de temperatura operativa
-40° C to 80° C
Export Designations
Código ECCN
6A003.b.4.b (Fast Video, 60Hz)
6A993.A (Slow Video, 9Hz)
